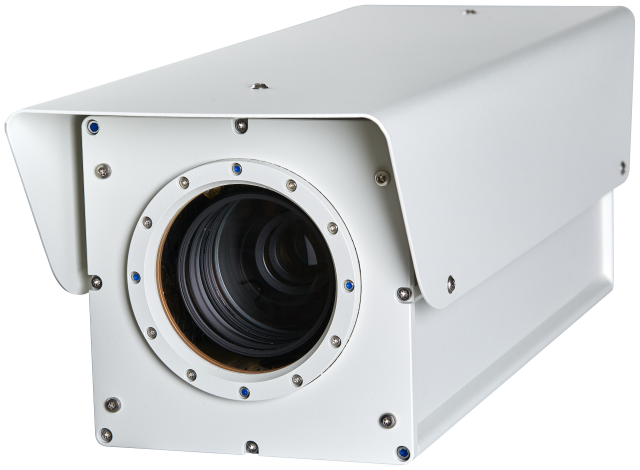

SUMO-X800 Day Night Camera

for long-range applications

Description

SUMO-X800 is designed for reliable operation in environments where long-range observation requires both image clarity and mechanical robustness. The camera combines optical and electronic image stabilization, allowing it to effectively compensate for camera shake caused by wind or other environmental vibrations. This feature is particularly important in long-range surveillance conducted from surveillance towers, where even very small camera movements can significantly degrade image quality.

SUMO-X800's high-precision sensors are able to detect minute vibrations, enabling consistent image quality and tracking performance. The camera also offers advanced noise reduction to maintain clear imaging with minimal noise even in low-light conditions. In addition, SUMO-X800 is able to reduce the visual distortion created by heat haze – an effect of atmospheric temperature differences – making distant objects easier to identify and observe. All optical and electronic components are housed in a sealed, ruggedized enclosure with an integrated heating system to ensure stable performance in varying weather conditions. The housing may be equipped with a protective sun shield.

The camera is fully remote-controlled via serial line, providing precise operator control without direct physical access.

Features:

- sharpening
- OSD + user text
- autofocus: continuous, quick, manual
- noise reduction
- automatic lens heating
- reticle and saving reticle position
- progressive scan
- white balance
- Auto ICR
- AutoIris
- AGC (automatic gain control)
- AGC parameter adjustment
- 40x optical zoom
- image stabilization: optical, electronic
- wide dynamic range / HDR
- fog reduction
- heat haze reduction
- backlight compensation
- lens defrost

Optional functions:

- wiper
- motion detection

Specifications

  SUMO-X800
Camera module
Sensor 1/1.8" CMOS
Resolution 1920 x 1080
Minimum illumination

Color mode: 0.00015 lx (f/1.2 AGC:MAX)
B/W mode: 0.0001 lx (f/1.2 AGC:MAX)

Video output  HD-SDI

Lens
Focal length 20 - 800 mm
Zoom 40x optical
FOV WIDE: 21.0° x 11.9°
TELE: 0.55° x 0.31°

Other
Control interface RS-232
Power supply 24 V DC (18 - 32 V)
Power consumption

<20 W (typical, without heaters)
<100 W (with all heaters)

Operating temperature -32 °C to +55 °C
Storage temperature -40 °C to +60 °C
Environmental protection IP 66
Autofocus one shot / continuous
Weight 10 kg
Dimensions (W x D x H) 198 x 520 x 184 mm
Standard MIL-STD-810, MIL-STD-461
